ONE-TOUCH SIMPLE SOLDERING POSITION

PRINT CIRCUIT BOARD

PRINT CIRCUIT BOARD

ONE-TOUCH SIMPLE SOLDERING POSITION.

TOP-341A SERIES FEATURE
  • ■Easy setting of P.C.B soldering position( X.Y)
  • ■Used together with point soldering machine.
  • ■Response to big size P.C.B( 250×350mm), M size.
  • ■Slow-up function prevent icicle,bridging( with TOP-341A)
  • ■Not necessary for customized tools.
  • ■Quality and productivity for soldering is up.
TOP.341A.342.343
GOOD EFFICIENT FUNCTION
  • Setting GUIDE on P.C.B( X.Y positioning).
    Then start switch "ON" and automatic operation safe.
  • Soldering position is variable in X-Y direction.
  • Flow timer and up-speed are adjustable.
  • Original slow-up function for prevent icicle, bridging.
  • Easy setting up for unit type.
  • Appoint point solder series.

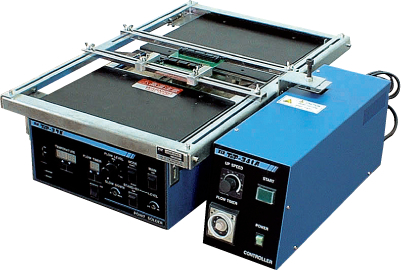

  • TOP-341A

    TOP-341A

  • TOP-342.343

    TOP-342.343

SPECIFICATIONS
ModelTOP-341ATOP-342TOP-343
ControllerP.C.B guideP.C.B guide mini
Point solderAll soldering machineTOP-375TOP-323A/333A
PowerAC100V(115/230spec)
50/60Hz
--
Rating55W--
Maximum P.C.B size-250×350mm
Positioning-XY Positioning
Movable sizeUp stroke 50mmX=300 Y=500X=300 Y=400
UP/DOWNLinear head motor--
Outside dimension130W×400D×175H380W×570D×30H380W×495D×30H
Weight6.5kg1.5kg1.5kg
Product catalog (PDF) View
